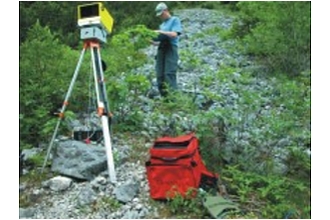

bodengestützter Laserscanner ILRIS-3D

Martin-Luther-Universität Halle-Wittenberg

Naturwissenschaftliche Fakultät III

Institut für Geowissenschaften und Geographie

Von-Seckendorff-Platz 4

06120 Halle (Saale)

Tel.:+49 345 5526010

Fax:+49 345 5527068

http://www.geo.uni-halle.de/

direktor@geo.uni-halle.de

Gerätebeschreibung

Technische Daten des ILRIS-3D (Quelle: www.optech.com)

Performance
Sample Rate 2500 points per second
Beam divergence 0.00974°
Minimum spot step (X and Y axis) 0.00115°°
Raw range accuracy 7 mm @ 100m
Raw positional accuracy* 8 mm @ 100m

Laser wavelenght 1500 nm
Laser class (IEC 600825-1) Class 1

Digital camera Integrated high resolution digital camera, (CMOS sensor) optional external camera
Scanner field of view (ILRIS-3D) when mounted at the rotation unit -20° through 90° (V) x 360° (H)
-90° through 20° (V) x 360° (H)
Scanner field of view (ILRIS-3 D) 40° x 40°

Physical Size
Scanner weight and physical size 13 kg, 320 (L) x 320 (W) x 220 (H) mm
Rotating base weight and physical size 10 kg, 300 (L) x 280 (W) x 127 (H) mm

Power supply and consumption 24 VDC, 75 W
Battery life (standard battery pack) 5 hours operation, hot-swappable for continuous operation

Data storage Solid State, removable USB memory field interchangeable
External GPS and digital camera mounts -
Standard software Data output to a variety of metafile and X Y Z coordinates, including active laser intensity photograph and digital photo

Environmental
Operating temperature 0° C to 40° C
Storage temperature -20° C to 50° C
